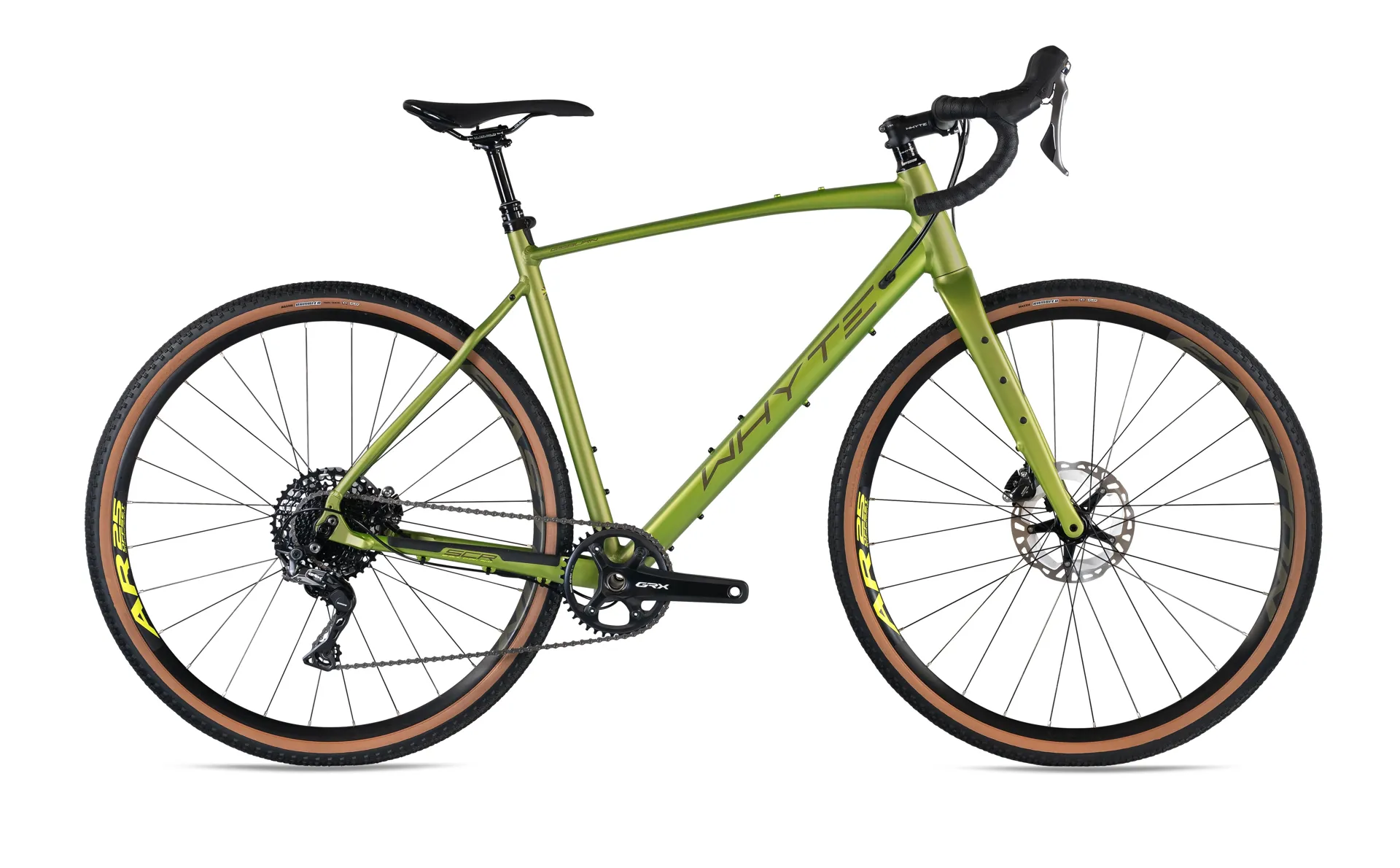

Whyte Gisburn V4 Gravel Bike

Season:2022

Brand:Whyte Bikes

Code:WGIS

Whyte MTB inspired geometry makes this bike exceptionally competent and controllable off-road. 1 x 11 gearing offers simplicity and efficiency that cannot be rivalled - and full hydraulic disc brakes add stopping power and control.

This truly ground-breaking Gravel/Adventure bike combines tubeless ready wheels and tyres with Shimano GRX 1x groupset (with the left lever remotely operating the dropper post) for maximum all-terrain performance.

Whyte's straight bladed full carbon fork with its tapered steerer tube and 12mm thru axle gives this bike great front end stiffness and steering precision. Combined with an ultra-wide Whyte 500 riser bar this allows the rider to truly exploit the radical geometry.
Technical Information
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
FORKWhyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards
REAR SHOCKN/A
HEADSETFSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
REAR HUBAlloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, 28 Hole
FRONT HUBAlloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 28 Hole, Concealed Hex Key
SPOKESDT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
RIMSEaston AR-25, Pinned Joint, Tubeless Ready, 28 Hole
TYRESMaxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound
SHIFT LEVERSShimano GRX ST-RX810, 11 Speed
FRONT DERAILLEURN/A
REAR DERAILLEURShimano GRX RD-RX812, Shadow Plus, 11 Speed
CASSETTEShimano CS-M7000, 11-42, 11 Speed
CHAINShimano CN-HG601-11, 11 Speed
CRANKSETShimano FC-RX812, Hollowtech II 40T, Alloy 30mm Axle, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
BOTTOM BRACKETShimano SM-BBR60, 68mm
SEATPOSTTrans-X YSP18 dropper post, 30.9mm, 50/52/54 80mm Travel, 56/58 100mm Travel, Shimano GRX Left Lever
SEATWhyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
BARWhyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm
STEMWhyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
GRIPSWhyte Anti Slip, Cross Bar Tape
FRONT BRAKESShimano GRX BR-RX810, 180mm Flat Mount Centre-Lock Disc, Internal Routing
REAR BRAKESShimano GRX BR-RX810, 160mm Flat Mount Centre-Lock Disc, Internal Routing
BRAKE LEVERSShimano GRX ST-RX810, Hydraulic
PEDALSNone
Sizing Information
5052545658
HEAD TUBE ANGLE7070707070
SEAT TUBE ANGLE7474747474
TOP TUBE HORIZONTAL559568597606624
BB HEIGHT ABOVE GROUND277277277277277
STANDOVER HEIGHT784801818835852
WHEELBASE10321042107210811102
CHAINSTAY LENGTH425425425425425
SEATPOST DIAMETER30.930.930.930.930.9
HEAD TUBE LENGTH130145160175190
SEAT TUBE LENGTH BBC2T500520540560580
STACK570584598612626
REACH396400.4425430445
