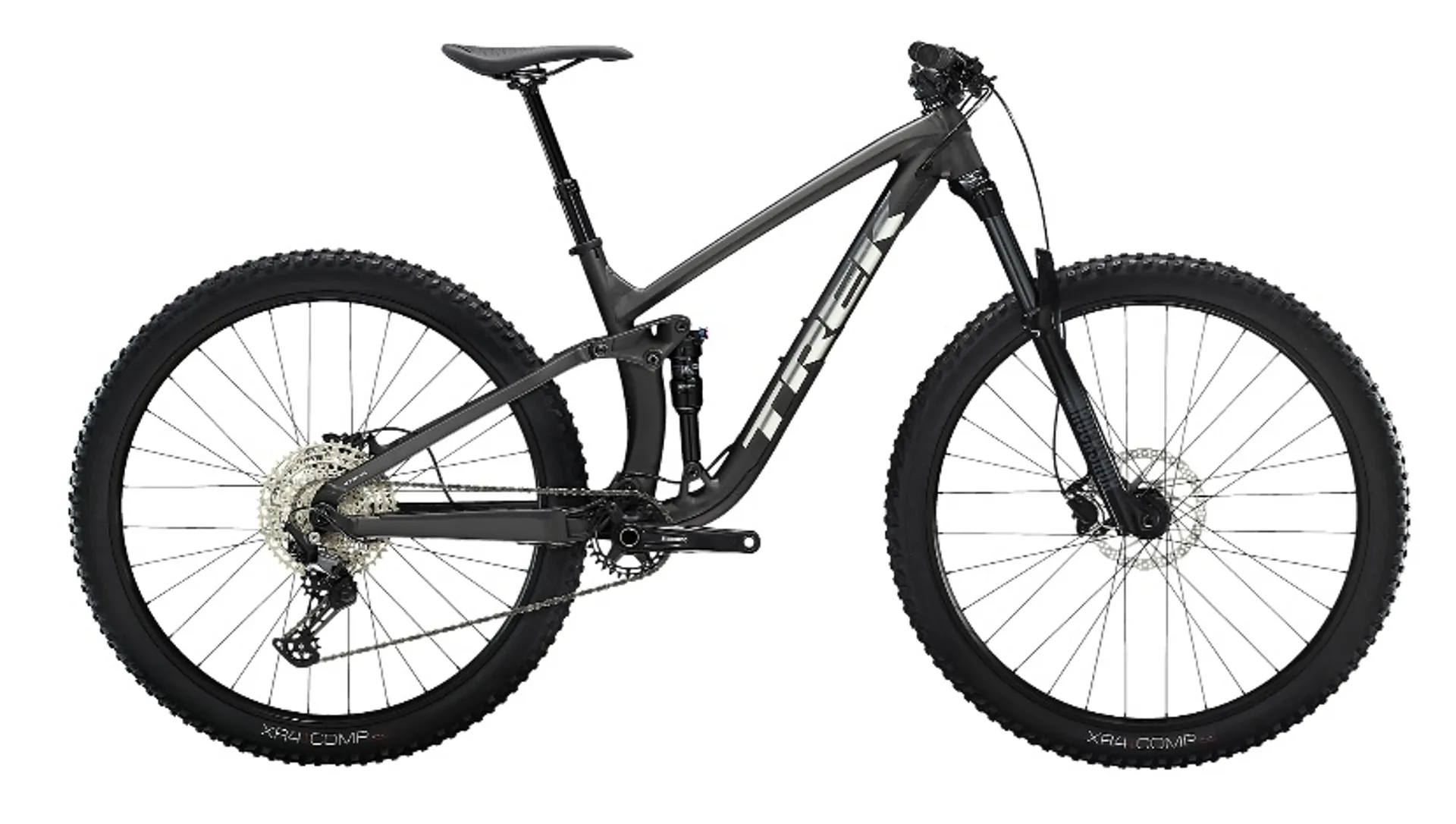

Trek Fuel Ex 5 Deore

Season:2023

Brand:Trek

Code:33073MATBLK

You get a high-end ride at an exceptional value with frame features like boost148 and abp that give you confident handling and room to upgrade parts as your skills grow;it has the capability of far more expensive trail bikes: it shreds singletrack and can even handle the occasional XC or enduro race;the dropper post lets you lower your saddle on the fly so it's out of the way on descents;the Rockshox fork's debonair spring can easily be adjusted for a specific rider weight, and it's lighter than
Technical Information
FrameAlpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
*ForkSize: XS , S
RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, Maxle Stealth, 140mm travel
Size: S , M , ML , L , XL , XXL
RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel
*ShockSize: XS , S
X-Fusion Pro 2, 2-position damper, 210x52.5 mm
Size: S , M , ML , L , XL , XXL
X-Fusion Pro 2, 2-position damper, 210x55 mm
Max compatible fork travel150mm (561mm axle-to-crown)
*Wheel rearSize: XS , S
Alex MD35 rim/MST148A Boost hub, 27.5'', 32H, 14 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples
Size: S , M , ML , L , XL , XXL
Alex MD35 rim/MST148A Boost hub, 29'', 32H, 14 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples
Hub frontBontrager alloy, 6-bolt, Boost110, 15mm thru-axle
*Hub rearSize: XS , S , M , ML , L , XL , XXL
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Size: XS , S , M , ML , L , XL , XXL
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle
Skewer rearBontrager Switch thru-axle, removable lever
RimAlex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Spokes14 g stainless steel
*TyreSize: XS , S
Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60"
Size: S , M , ML , L , XL , XXL
Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Rim stripBontrager TLR
Max tyre sizeFrame: 29x2.60" Fork: See manufacturer
ShifterShimano Deore M6100, 12-speed
Rear derailleurShimano Deore M6100, long cage
*CrankSize: XS , S , M , ML , L
Shimano MT511, 30T steel ring, Boost, 170 mm length
Size: M , ML , L , XL , XXL
Shimano MT511, 30T steel ring, Boost, 175 mm length
Bottom bracketShimano MT500, 92 mm, PressFit
CassetteShimano Deore M6100, 10-51, 12-speed
ChainShimano Deore M6100, 12-speed
Max. chainring size34T
SaddleBontrager Arvada, steel rails, 138 mm width
*SeatpostSize: XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M , ML , L , XL , XXL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
HandlebarBontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
GripsBontrager XR Trail Comp, nylon lock-on
StemBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Head setKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
BrakeShimano hydraulic disc, MT201 lever, MT200 calliper
Brake rotorShimano RT56, 6-bolt, 180 mm
WeightM - 34.61 lb/15.7 kg
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
