Gravel tuned, smoother, faster, more confident
the lightest suspension fork Fox has ever built, the all-new 32 taper-cast gravel fork has arrived. It's time to ditch the flex stem and undamped leaf springs; suspending the bike greatly improves rider experience, increases control, takes the edge off extended gravel rides and dramatically expands the terrain you can cover.

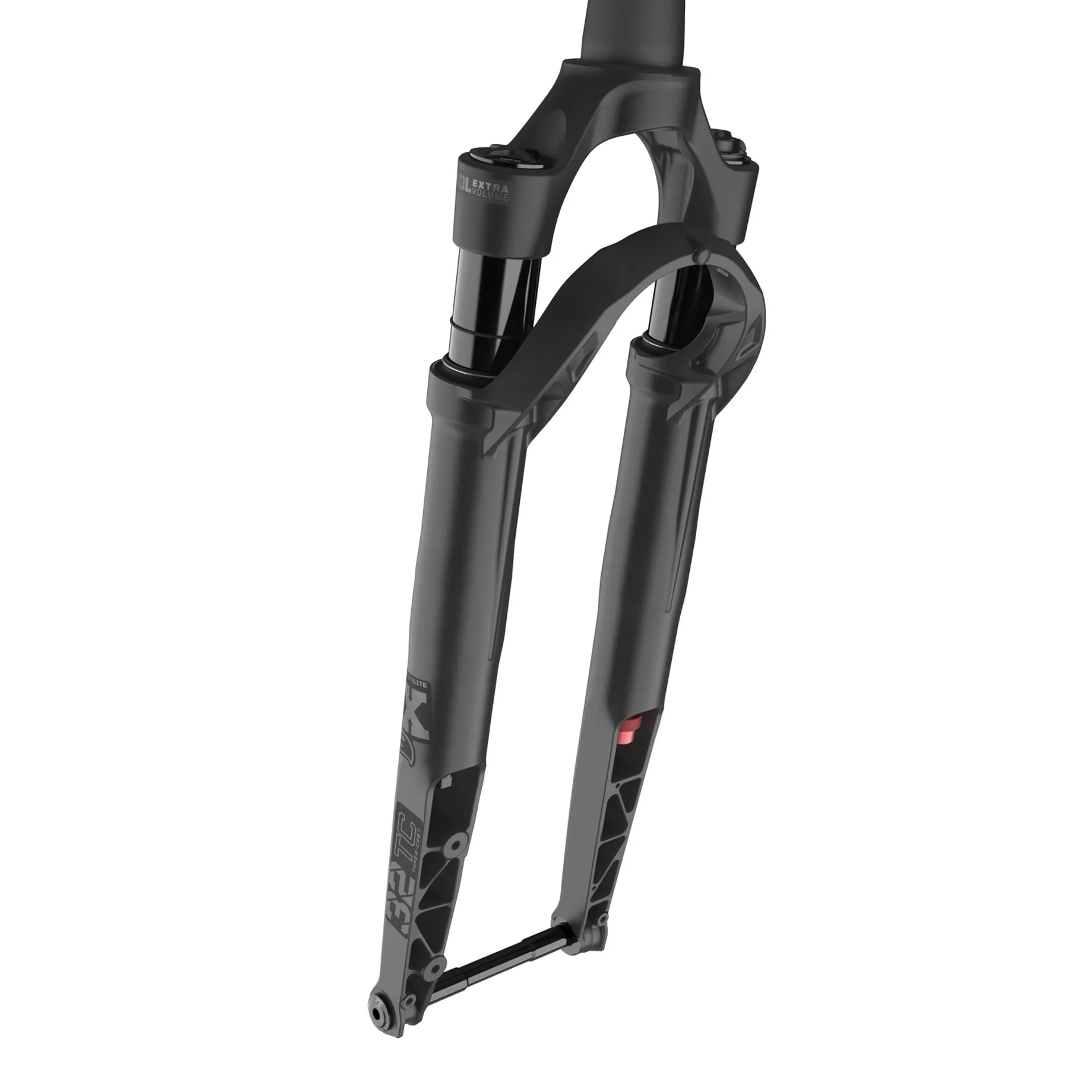

Purpose built. Developed in conjunction with emergent gravel bike designs, the 32 taper-cast features a sleek drop crown profile and new knob shapes that drastically improve downtube clearance, for fitment on all frame sizes and styles. A sleek, reverse arch design further improves fitment, decreases frontal area for better aerodynamics and provides stiffness through the arch matrix design.
Lighter the lightest fork Fox has ever designed and fabricated, the incredible 1226g weight retains functionality such as integrated fender mounts, 160mm and 180mm flat mount compatibility. The fork also features a lightweight kabolt thru axle, and a longer steerer to allow for greater fitment options on gravel frames.
Gravel tuned equipped with fox's proven fit4 or grip damper options, this lightweight package retains all the tunability of its mountain lineage, including adjustable travel options up to 50mm. The lightweight, short-travel optimized air spring requires fewer, if any, volume spacers and the design employs their lower leg air / oil bypass channels.
Performance series forks retain the same black anodized 7000 series aluminum upper tubes as performance elite, except paired with a grip damper.
Fit grip inspired from moto, the grip damper uses our fit sealed cartridge technology combined with a coil-sprung, independent floating piston.
Grip allows excess oil to purge through specially designed ports at the top of the damper to maintain consistent damping and increase durability.
Adjustments
- three on-the-fly compression damping positions: open, medium, firm.
- Additional micro-adjust between settings: detents.
- Low-speed rebound: 10 clicks.
All 32 taper-cast performance grip forks
- upper tube finish: black anodized.
- Rotor size: 160 direct flat mount, up to 180 compatible.
- Fender mount: included full fender mount hardware.
- Air spring: float evol.
- Starting weight: 1226g.
